| Product Name | Package | Status | ESD | Configuration | Type | VDSS (V) | ID (A) | PD (W) | VGS (V) | Tj (℃） | Vth_Typ (V) | Rdson@ VGS10V_TYP (mΩ) | Rdson@ VGS10V_Max (mΩ) | Rdson@ VGS4.5V_TYP (mΩ) | Rdson@ VGS4.5V_Max (mΩ) | Rdson@ VGS2.5V_TYP (mΩ) | Rdson@ VGS2.5V_Max (mΩ) | Ciss_Typ (pF) | Coss_Typ (pF) | Crss_Typ (pF) | Qg_Typ (nC) | Grade |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

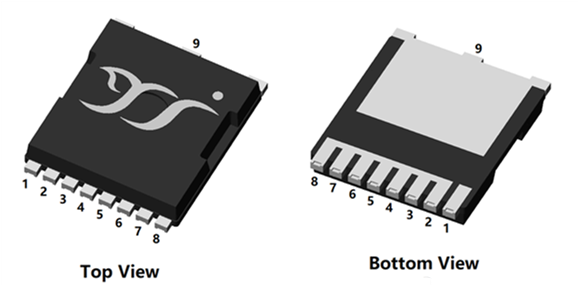

| YJT300G10H | TOLL | Active | No | Single | N | 100 | 300 | 250 | ±20 | 150 | 2.8 | 1.35 | 1.7 | / | / | / | / | 13600 | 4000 | 110 | 257 | Standard |
| Product Name | Package | PACKAGE CODE | UNIT WEIGHT(g) | MINIMUM PACKAGE(pcs) | INNER BOX QUANTITY(pcs) | OUTER CARTON QUANTITY(pcs) | DELIVERY MODE |
|---|---|---|---|---|---|---|---|
| YJT300G10H | TOLL | F1 | 0.75 | 2000 | 4000 | 20000 | Reel |
