| Product Name | Package | Status | ESD | Configuration | Type | VDSS (V) | ID (A) | PD (W) | VGS (V) | Tj (℃） | Vth_Typ (V) | Rdson@ VGS10V_TYP (mΩ) | Rdson@ VGS10V_Max (mΩ) | Rdson@ VGS4.5V_TYP (mΩ) | Rdson@ VGS4.5V_Max (mΩ) | Rdson@ VGS2.5V_TYP (mΩ) | Rdson@ VGS2.5V_Max (mΩ) | Ciss_Typ (pF) | Coss_Typ (pF) | Crss_Typ (pF) | Qg_Typ (nC) | Grade |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

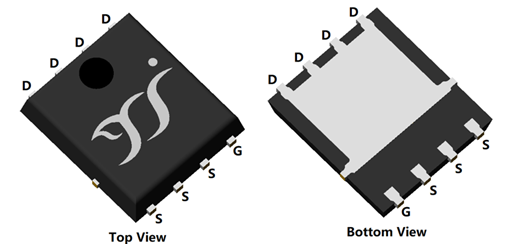

| YJG300G04HR | PDFN5060-8L | Active | No | Single | N | 40 | 300 | 136 | ±20 | 175 | 2.8 | 0.6 | 0.85 | / | / | / | / | 5410 | 3390 | 230 | 79 | Industrial |
| Product Name | Package | PACKAGE CODE | UNIT WEIGHT(g) | MINIMUM PACKAGE(pcs) | INNER BOX QUANTITY(pcs) | OUTER CARTON QUANTITY(pcs) | DELIVERY MODE |
|---|---|---|---|---|---|---|---|
| YJG300G04HR | PDFN5060-8L | F1 | 0.105 | 5000 | 10000 | 100000 | Reel |
